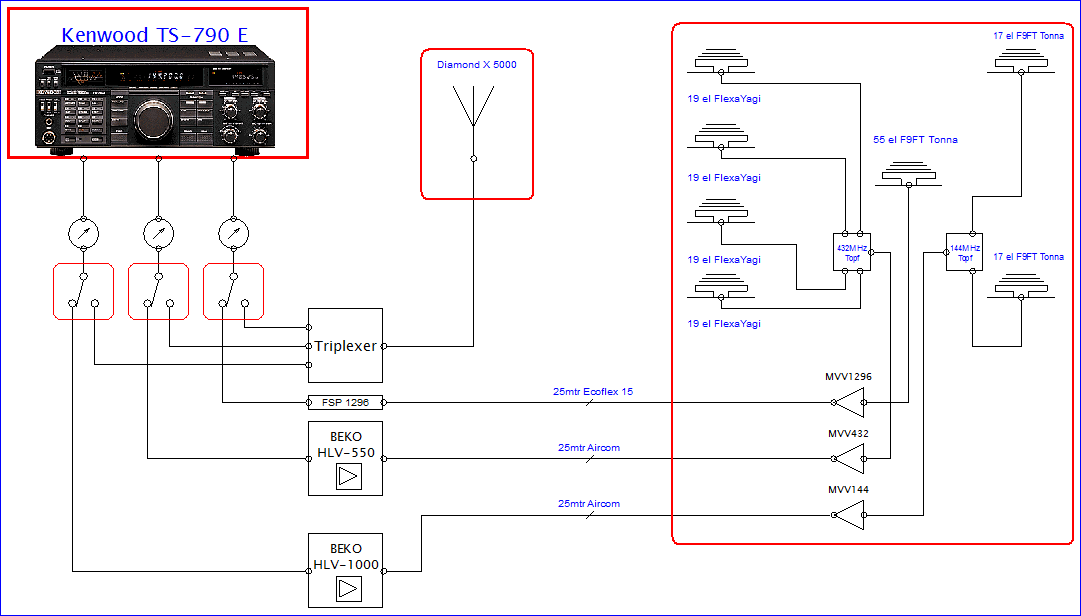

interaktives Blockschaltbild der Anlage (Teil1) - Anlageteile können angeklickt werden !

Blockschaltbild

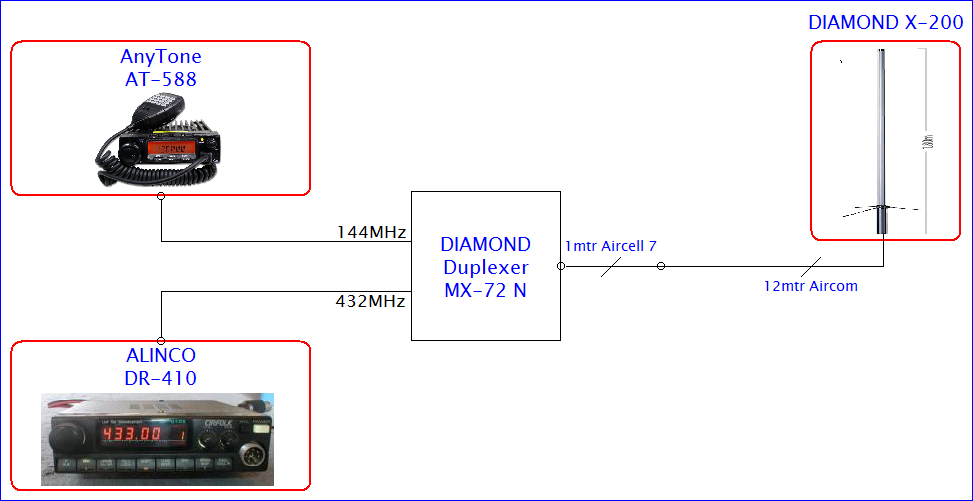

Blockschaltbild der Anlage (Teil2) - FM Station 144 MHz / 432 MHz

UKW - Geräte meiner Station:
Kenwood

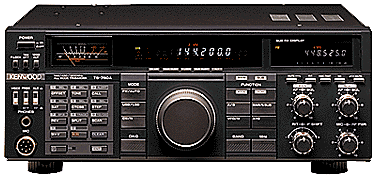

KENWOOD TS-790 E Allmode Transceiver
Kenwood TS-790E

Demonstrating the full potential of an all-mode transceiver equipped with advanced electronics, the powerful TS-790A/E sets the pace in terms of both features and performance. As well as dual-channel watch and full-duplex cross-band operation, it offers 59 multi-function memory channels. And when equipped with the optional 23-cm band unit, it offers tri-band coverage for maximum versatility. Feature for feature, there's no better way to explore the expanding world of VHF and UHF communications.
microHAM logo

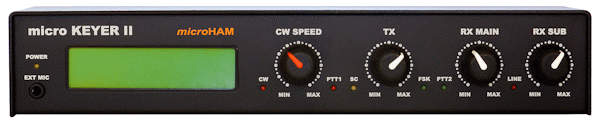

micro KEYER II™ is the most powerful single radio All-In-One USB interface and the only USB interface to fully support voice operation including microphone switching. With an single USB port, microKEYER II™ works with any Windows-based logging or control program for CW, voice, FSK and digital (RTTY, PSK31, SSTV, OLIVIA, MFSK, WSJT, etc.) operation. micro KEYER II
micro KEYER II™ includes a radio control interface that supports all standards (RS-232, CI-V, Kenwood and Yaesu TTL),
a powerful CW memory keyer using K1EL's WinKey, a Digital Voice Keyer, two channel audio for transceivers with dual receivers, automatic microphone selection,
and a puffer/sequencer for amplifier or LNA control.


ALINCO TR-410
Alinco

AnyTone Logo

AT-588

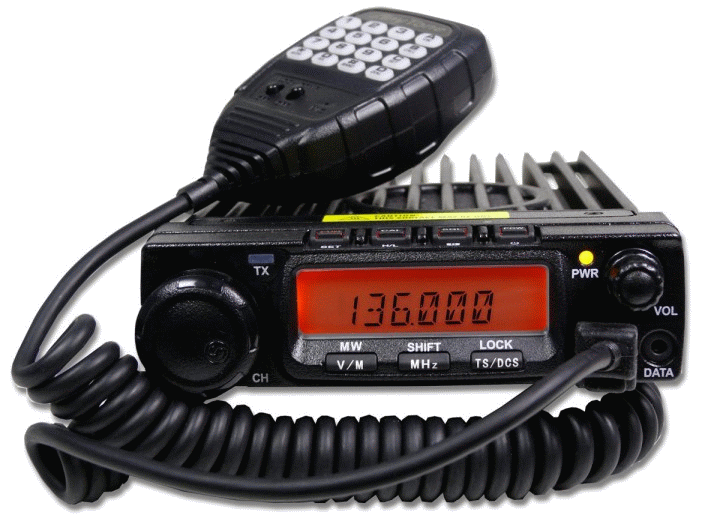

  AnyTone AT-588



BEKO HLV-1000 BEKO HLV-550 Mastvorverstärker 1296 MHz Mastvorverstärker 432 MHz Mastvorverstärker 144 MHz Anpasstopf für 70cm Anpasstopf 2mtr Ecoflex 15 Aircom plus Aircom plus Koaxschalter Flexa Yagi 19 el 55el F9FT 17el F9FT 17el F9FT Fernspeiseweiche Triplexer Diamond X5000 SWR Messgerät Messkoppler für SW-200 Messkoppler für SW-200 Dimond MX-72 N AnyTone AT-588 Aircell 7 Aircom ALINCO DR-410
